Medical Grade Air Purifiers
for Hospitals, Laboratories and Healthcare Clinics
Better AIR QUALITY for patients and staff
The hospital and healthcare environments require high quality air management solutions to protect patients and staff against infections and occupational diseases.
Working closely with healthcare professionals allowed us to understand their strict requirements and design highly efficient air purification systems to provide safer and healthier working environments.
Our units offer effective air purification solutions against airborne microorganisms (bacteria, viruses, and fungal spores), gaseous contaminants, chemicals and odors.
Recirculation units
positive air units
negative air units
source capture units
Applications
Transplant units · Burn units · ER
Geriatric and elderly care · Hematology
Intensive Care Units · Laser surgery
Microbiology Laboratories · Neonatal ICU
Oncology · Organ transplants
Isolation rooms · Pharmacies
Recirculation unit: Continuously recirculating the ambient room air through a multi-stage filtration system, removing airborne contaminants every time the air passes through the unit.
Positive air unit: The air purification units pump clean air into the environment maintaining a higher air pressure (positive) and limiting the flow of contaminated air into the room. (Ideal for patients with sensitive or compromised immune systems)
Negative air unit: The units create a low pressure environment by filtering the contaminated air and venting it out of the room, preventing the spreading of contaminants from the room. (Ideal for patients with contagious diseases)
Source capture: The units equipped with source capture options filter contaminants at their point of origin, capturing the contaminants before they disperse in the environment.

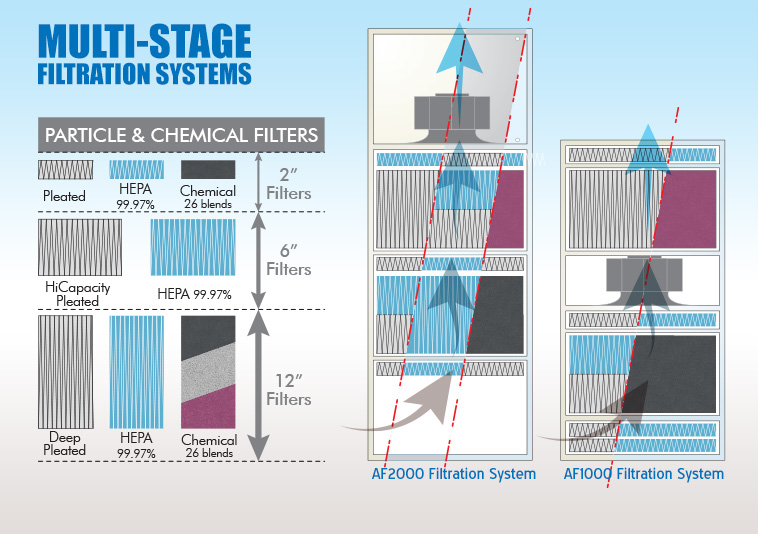

MULTI-STAGE AIR PURIFICATION SYSTEMS

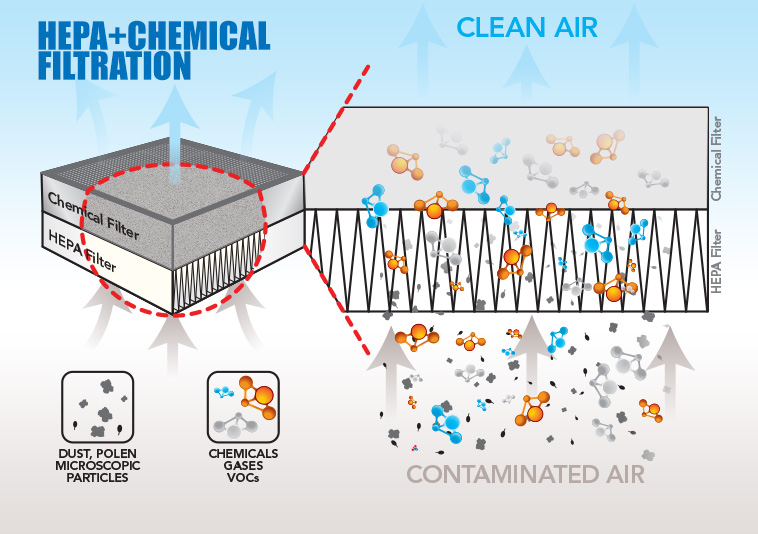

HEPA Filters: Very effective against viruses, bacteria, fungal spores and very fine particles
Refillable chemical filters: Contain carefully engineered filtration media blends to remove gases, odors, chemical vapors and volatile organic compounds (VOCs).
The SOLUTION
Our air purifiers offer improved air quality for hospitals, Laboratories and healthcare clinics by using a proven multi-stage filtration technology against high concentrations of chemicals, gases, odors, particles and biological contaminants,
Available as standalone units (standard configuration) for general air purification, our units can be easily adapted
for virtually any application that requires removal of chemicals, vapors, gases, VOCs, bacteria, viruses, fungal spores and particles directly at the source, by using a vast selection of flexible or articulated arms, hoods and ducting accessories to apture any contaminants before they spread into the environment. [Medical Air Purifiers PDF Brochure]

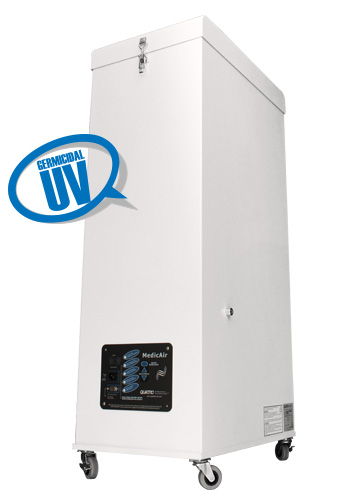

MedicAir
Highly efficient air purification system that can be deployed in less than 15 minutes and transform a room* into an emergency negative pressure isolation environment.
[Download MedicAir PDF Brochure]
Dimensions: H x W x D
45.5 x 22.25 x 14.25 (in), 175 lbs
116 x 57 x 36 (cm), 80 kg
Airflow (nominal):
560 CFM (264 liters/s);
Pre-filter: multi-layered, 30% efficient
HEPA filter:
(2) Gel-sealed Cartridge Filters, remove
99.97% of particles down to 0.3 micron
Filter seal: LaserBlue Gel
UV Light: (4) Germicidal UV Bulbs
Power: 120V, 60Hz, 4A / 230V, 50Hz, 2A
Sound level: < 54dbA at low speed
Cabinet: Heavy gauge welded steel

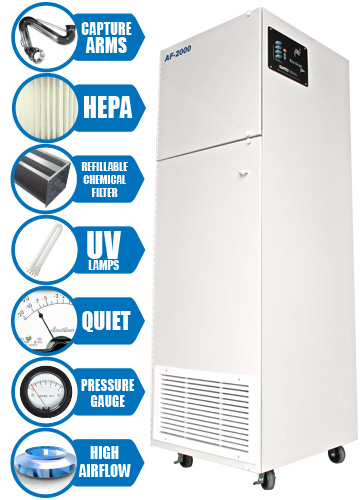

AF2000
Dimensions: H x W x D
71 x 24 x 26 (in), 350 lbs
180 x 61 x 66 (cm), 159 kg
Airflow (nominal):
1000 CFM (1700 m3/h); adjustable intake/discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron;
Chemical filter:
up to 240 lbs (110 kg); 26 blends available
UV Light: Available for certain configurations
Power: 120V, 60Hz, 4A / 230V, 50Hz, 2A
Sound level: < 54dbA at low speed
Cabinet: Heavy gauge welded steel
Options: high air flow configurations; various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

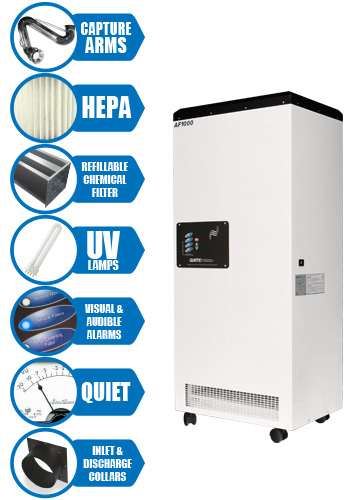

AF1000
Dimensions: H x W x D
52 x 16 x 22 (in), 200 lbs
132 x 40 x 56 (cm), 90 kg
Airflow (nominal):
500 CFM (850 m3/h); adjustable discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron
Chemical filter:
up to 100 lbs (45 kg); 26 blends available
UV Light: Available for certain configurations
Power: 120V, 60Hz, 2A / 230V, 50Hz, 1A
Sound levels: < 36dbA at low speed
Cabinet: Heavy gauge welded steel
Options: various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

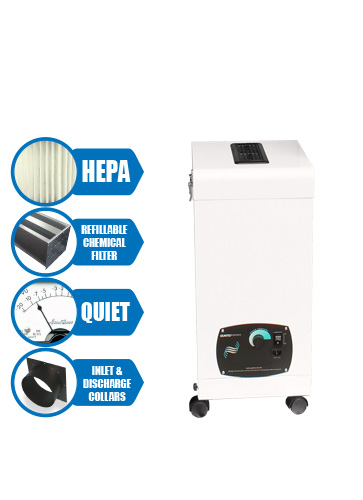

AF400
Dimensions: H x W x D
12 x 15 x 30 (in), 48 lbs
30 x 38 x 76 (cm), 22 kg
Airflow (nominal):
280 CFM (475 m3/h); adjustable discharge grilles
HEPA filter:
99.97% of particles down to 0.3 micron
Chemical filter:
up to 25 lbs (12 kg); 26 blends available
UV Light: Available in certain configurations
Power: 120V, 60Hz, 2A / 230V, 50Hz, 1A
Sound levels: < 36dbA at low speed
Cabinet: Heavy gauge welded steel
Options: various diameter inlet/discharge collars for ducting, pressure gauges, custom filter sequences, OEM branding, variable speed control, audible alarms, visual alarms.

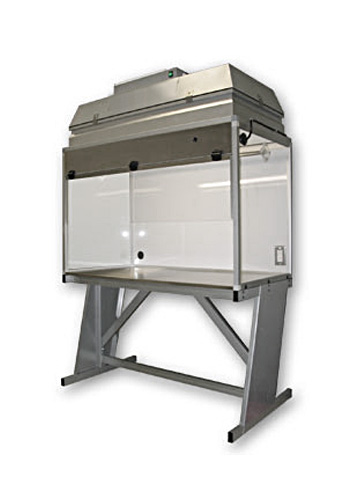

QUATRO HEPA HOOD
QHH
Body: Anodized aluminum extrusion with nylon connectors
Side panels: clear acrylic
Back panel: white polypropylene
HEPA filter:
99.97% of particles down to 0.3 micron
- Better than ISO 5 conditions (class 100)
- Fluorescent light fixture
- Quick change disposable pre filters
- Variable speed control
- On/Off switches for lights and fans
Dimensions: W x D x H
QHH2: 24x25x30.25 in / 610x635x768 mm
QHH3: 36x25x30.25 in / 914x635x768 mm
QHH4: 48x25x30.25 in / 1219x635x768 mm
QHH5: 60x25x30.25 in / 1524x635x768 mm
QHH6: 73x25x30.25 in / 1854x635x768 mm
QHH8: 97x25x30.25 in / 2464x635x768 mm
